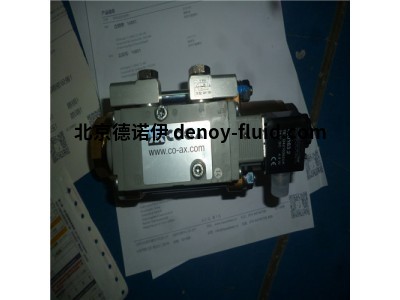

德国CO-AX阀门 FK 80 DR
德国CO-AX阀门 FK 80 DR
二位三通直动式同轴阀
color:#222222;background:#F9F9F9" lang="EN-US">FK 80 DR
color:#222222;background:#F9F9F9" lang="EN-US"> cn_k80dr.pdf
王春风 QQ:2853369886 手机:13552869098 电话:010-64717020-123 传真:010-84786709-666 邮件:sales22@handelsen.cn |
特性 color:#222222;background:#F9F9F9" lang="EN-US">
端口:法兰 background:#F9F9F9" lang="EN-US"> PN 16
功能:NC
压力范围:0-16 bar color:#222222" lang="EN-US">
A B max. 16 bar
B A max. 5 bar
A C max. 16 bar
C A max. 16 bar
mso-fareast-font-family:宋体;color:#222222" lang="EN-US">K 宋体;color:#222222" lang="EN-US">V值: color:#222222;background:white" lang="EN-US">55,0 background:white" lang="EN-US">m³/ background:white" lang="EN-US">h
介质:气态 color:#222222;background:#F9F9F9" lang="EN-US"> 液态 background:#F9F9F9" lang="EN-US"> 高粘稠 凝胶状 color:#222222;background:#F9F9F9" lang="EN-US"> 高污染
流向:见压力范围
开关周期: color:#222222;background:#F9F9F9" lang="EN-US">20 background:#F9F9F9" lang="EN-US">1/ background:#F9F9F9" lang="EN-US">min
开关时间:打开 background:white" lang="EN-US"> 600 ms
关闭 800 ms
介质温度: background:#F9F9F9" lang="EN-US">DC -20 °C — +80 °C
AC -20 °C — +80 °C
环境温度: background:white" lang="EN-US">DC -20 °C — +80 °C
AC -20 °C — +80 °C
重量: color:#222222;background:#F9F9F9" lang="EN-US">48,8 kg
标称电压: background:white" lang="EN-US">Un color:#222222;background:white" lang="EN-US">24 V DC
U background:white" lang="EN-US">n color:#222222;background:white" lang="EN-US"> background:white" lang="EN-US">230 V 40-60 Hz AC
驱动: background:#F9F9F9" lang="EN-US">DC 直流电磁铁
AC 内置式整流器的直流电磁铁
绝缘等级: color:#222222;background:white" lang="EN-US">H 180 °C
防护等级: color:#222222;background:#F9F9F9" lang="EN-US">IP65
负载率: color:#222222;background:white" lang="EN-US">ED 100%
连接:按DIN EN175301-803标准的插头 background:#F9F9F9" lang="EN-US">, 形式A 4个位置 color:#222222;background:#F9F9F9" lang="EN-US">X90°, 电线直径 background:#F9F9F9" lang="EN-US"> 6-8 mm
德国CO-AX阀门 FK 80 DR
