德国Steute传感器Steute IS M30b 10AAACA PNP NO 2m电感式
德国Steute传感器Steute IS M30b 10AAACA PNP NO 2m电感式
德国Steute传感器Steute IS M30b 10AAACA PNP NO 2m电感式
| 陈华丽 QQ：2351635597 手机：18519260275 电话：010-64714988-172 传真：010-84786709-667 邮件：sales65@handelsen.cn |
 |
 |

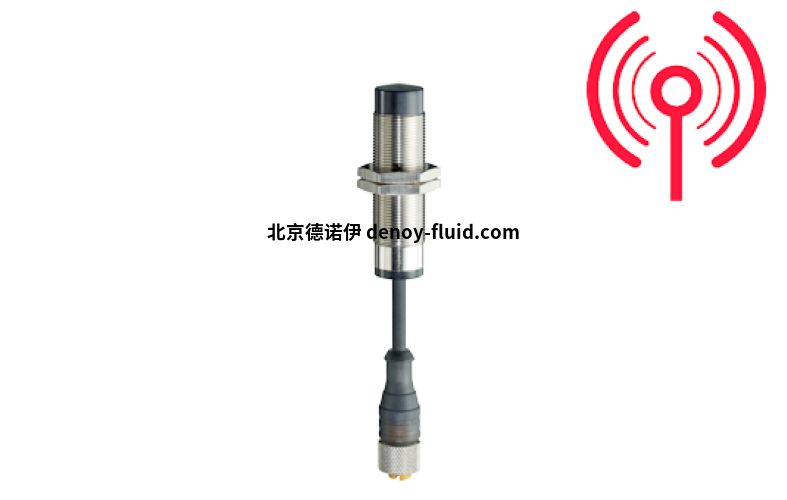

Steute IS M30
金属外壳
M30 x 1.5螺纹
嵌入式安装
寿命长，无机械磨损
对污垢不敏感
带LED
带预接线电缆或插入式连接器
技术数据
应用标准EN 60947-5-2
外壳黄铜，有刻痕
前盖聚碳酸酯
防护等级IP 67，符合IEC/EN 60529
连接电缆PVC（4.6 mm）3 x 0.35 mm²或插入式连接器M12 x 1
开关元件1 NO触点，PNP，3线
额定开关距离sn 10 mm
校正系数钢（Fe360）=1；不锈钢约0.7；黄铜约0.5；铝约0.4；铜约0.4
额定工作电压范围UB 10…30 VDC
残余波纹≤10%
开关电流。零点二一
Ie时的电压降。1.8伏
24 VDC时电流吸收<15 mA
滞后约。10%
开关频率300 Hz
重复性≤3%
保护电路感应干扰保护、极性反转保护、短路保护和过载保护
LED显示屏在启动时亮起黄色
环境温度-25°C…+85°C
带预接线电缆
类型 物料编号
Steute IS M30b 10AAACA PNP NO 2m1202194
带插入式连接器
类型 物料编号
Steute IS M30b 10AAAC PNP 无 ST21202196
